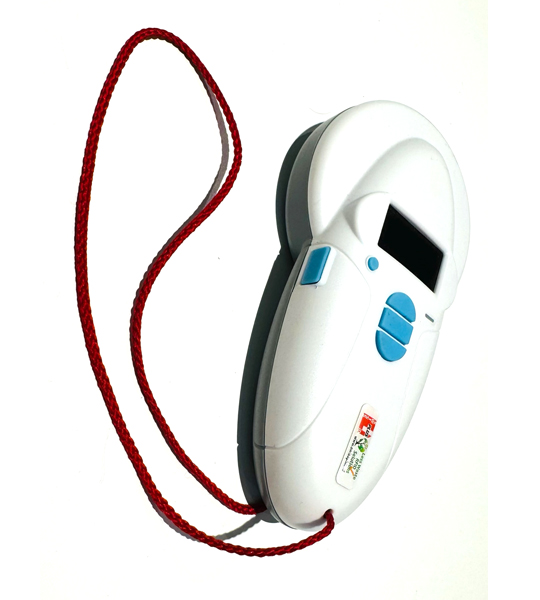

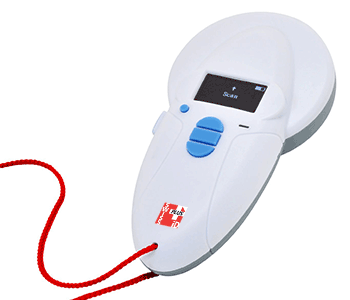

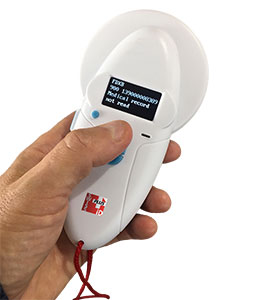

RT100 V8BTT ISO Microchip Reader/Scanner
Contact us for Prices

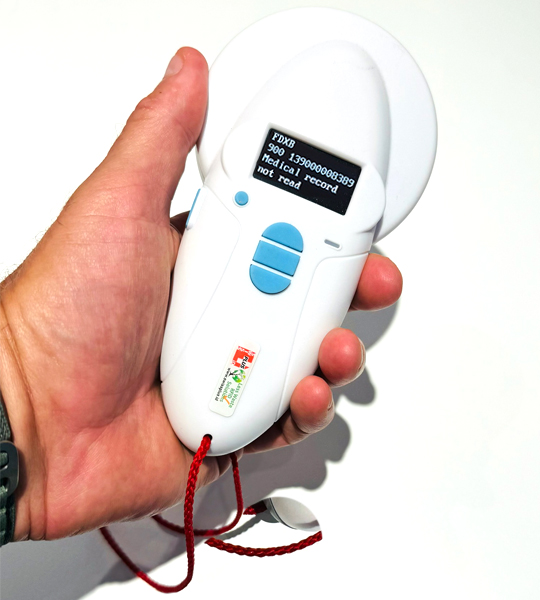

The RT100 V8BTT Bluetooth Reader (Pocket) Scanner is one of the most efficient low cost readers available.
A handy pocket size RFID tag scanner, it’s useful for in-field or office applications.
Robust, easy to use, compatible with smart phones and suitable for a variety of specialist applications operating with Dual BT2/BT4 function for connection with both iOS and Android devices. (Reading of ISO 11784/5 FDX-B and HDX)
- FCC CE Compliant
- Reads all NLIS and RFID tags (ear tags, bolus and injectables)
- Reads Temperature sensing chips
- Available with Dual BT2/BT4 chipset
- USB Cable & Wrist strap included
- Re-chargeable 3.7v Lithium Ion Battery
- 12 Months Warranty
- Memory allows for 800 animal IDs
- IOS & Android Apps available to download

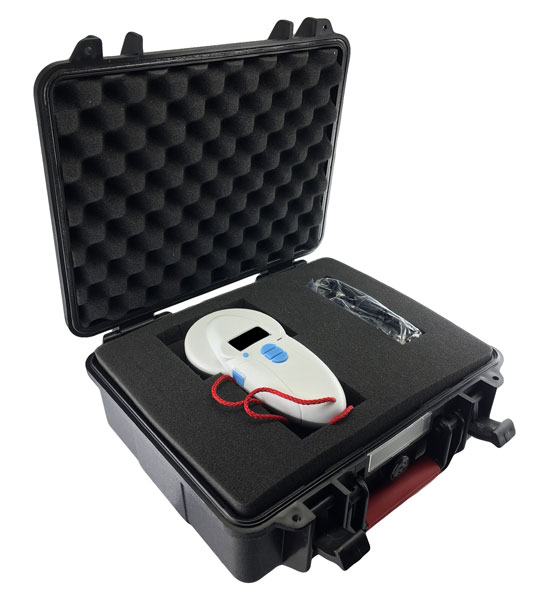

- Note: Case sold separately.
Additional information
| Battery Type | Re-chargeable 3.7v Lithium Ion |
|---|---|
| Connection Type | USB & Bluetooth |
| Important! | The V8BT (RT100) cannot identify or read the TROVAN UNIQUE non ISO microchip |
- Frequency: 134.2kHz Read and write ISO 14223
- Protocol: ISO11784/5 FDX-A, FDX-B, EM4102, HDX

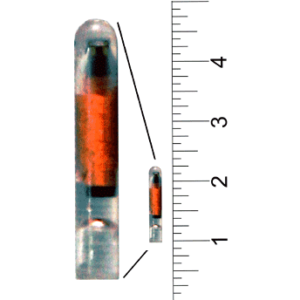

- Reading range: Up to 11 cm（12mm×2mm, glass tag）
- Display: 128×64, black and white, OLED
- Keys: 4 buttons
- Indication Battery charge control and Bluetooth: Buzzer
- USB port USB virtual comport: Bluetooth virtual com.port
- Power supply Lithium Ion battery: 1400mAh，3.7V ; 5.18 Watts/hr
- Dimension: 155mm (L)×82(W)×33(H)
- Net weight: 155g
- Charging mode: Mini USB
- Accessories: Mini USB cable, Product instructions. Battery.
- Compliance certifications: FCC, CE certification
- Memory: Up to 800 ID numbers
- The supplement to the V8BTT Manual dealing with Temperature can be downloaded HERE
- The latest version of the V8BTT Basic User Guide can be downloaded HERE
- The latest version of the V8BTT Comprehensive User Manual can be downloaded HERE
- The latest version of the RT Driver can be downloaded HERE
- The latest version of the RT Terminal Software can be downloaded HERE
- V8BTT (RT100) Bluetooth Scanner
- RFID Eartag (USDA) HDX and FDX-B
- Reads FDX-B & HDX (ISO standard) and Temperature sensing chips.
- *Note: Chip display temperature is between range: 91.4°F to 109.4°F . A snowflake symbol will display if below 91.4°F (32°C)
- Operating temperature: – 0° to + 40°
- Power supply: 3.7V lithium re-chargeable battery
- Memory function: storage capacity of 800 identifiers
- Connectivity: Bluetooth & USB/Mini USB cable supplied
- Compatible with Android and Apple IOS Mobile Phones subject to compatible applications being installed.
